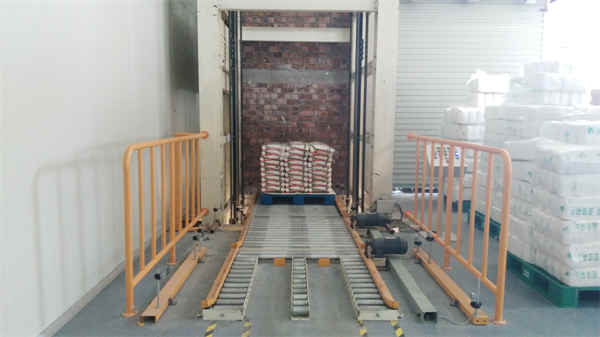

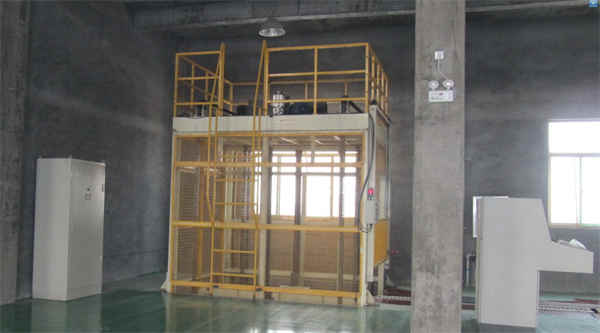

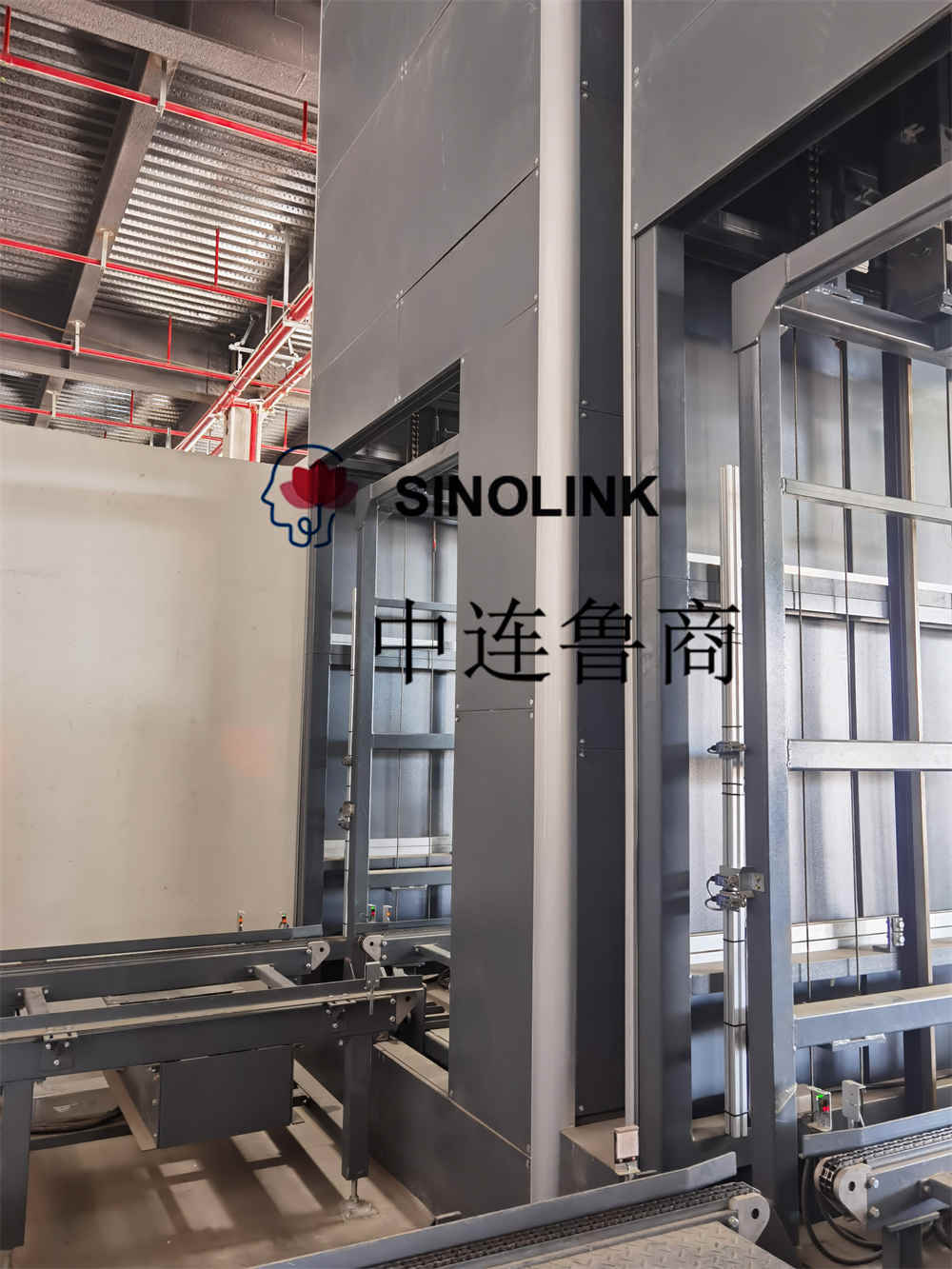

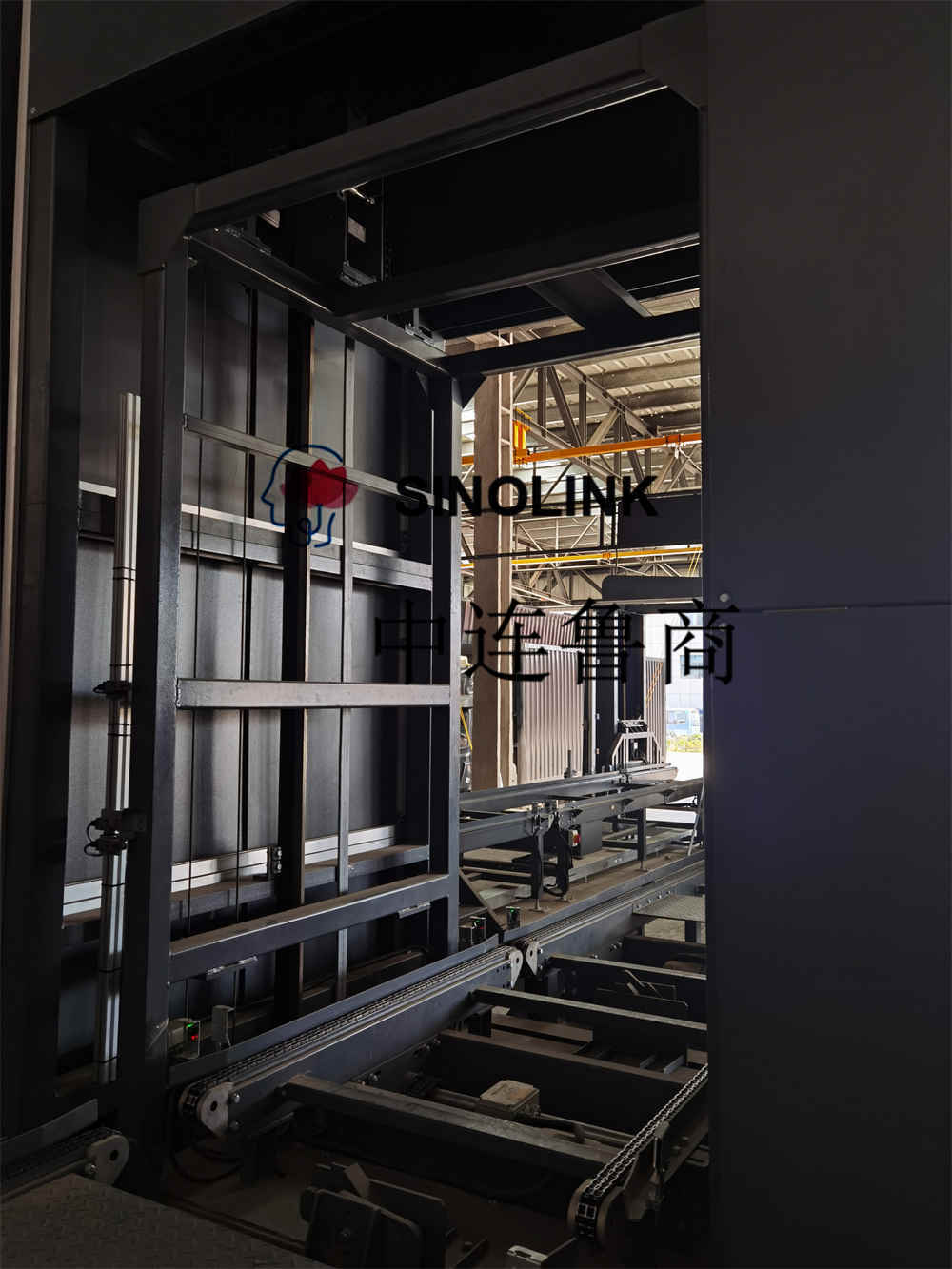

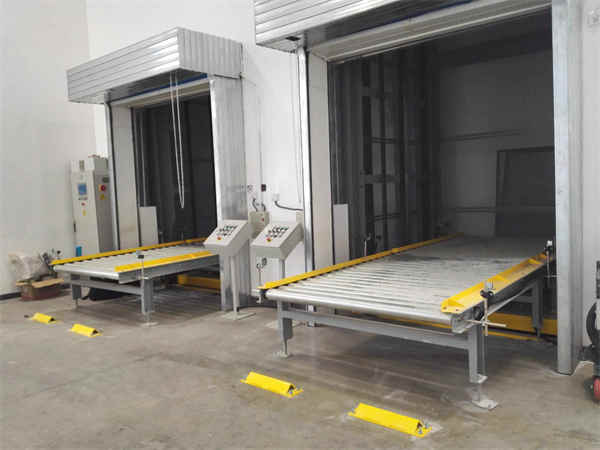

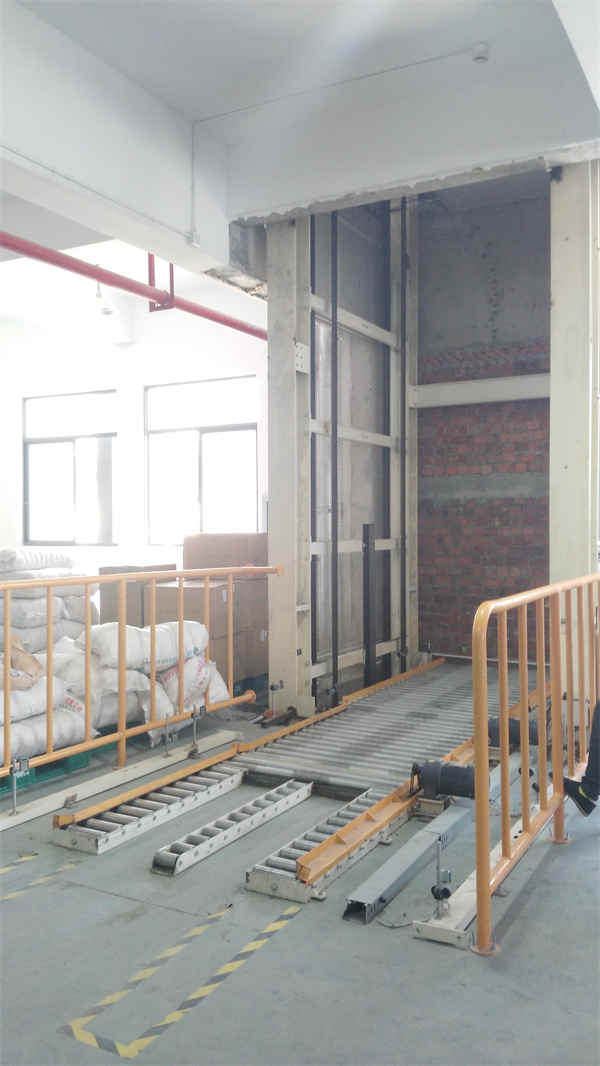

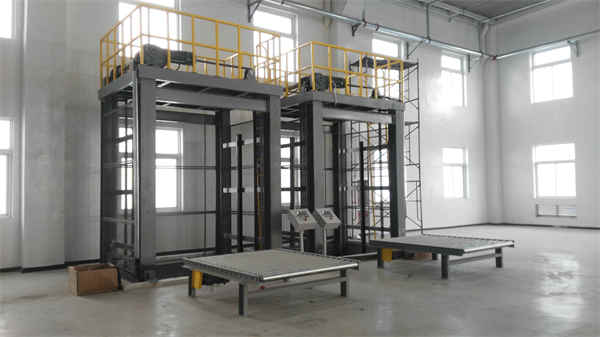

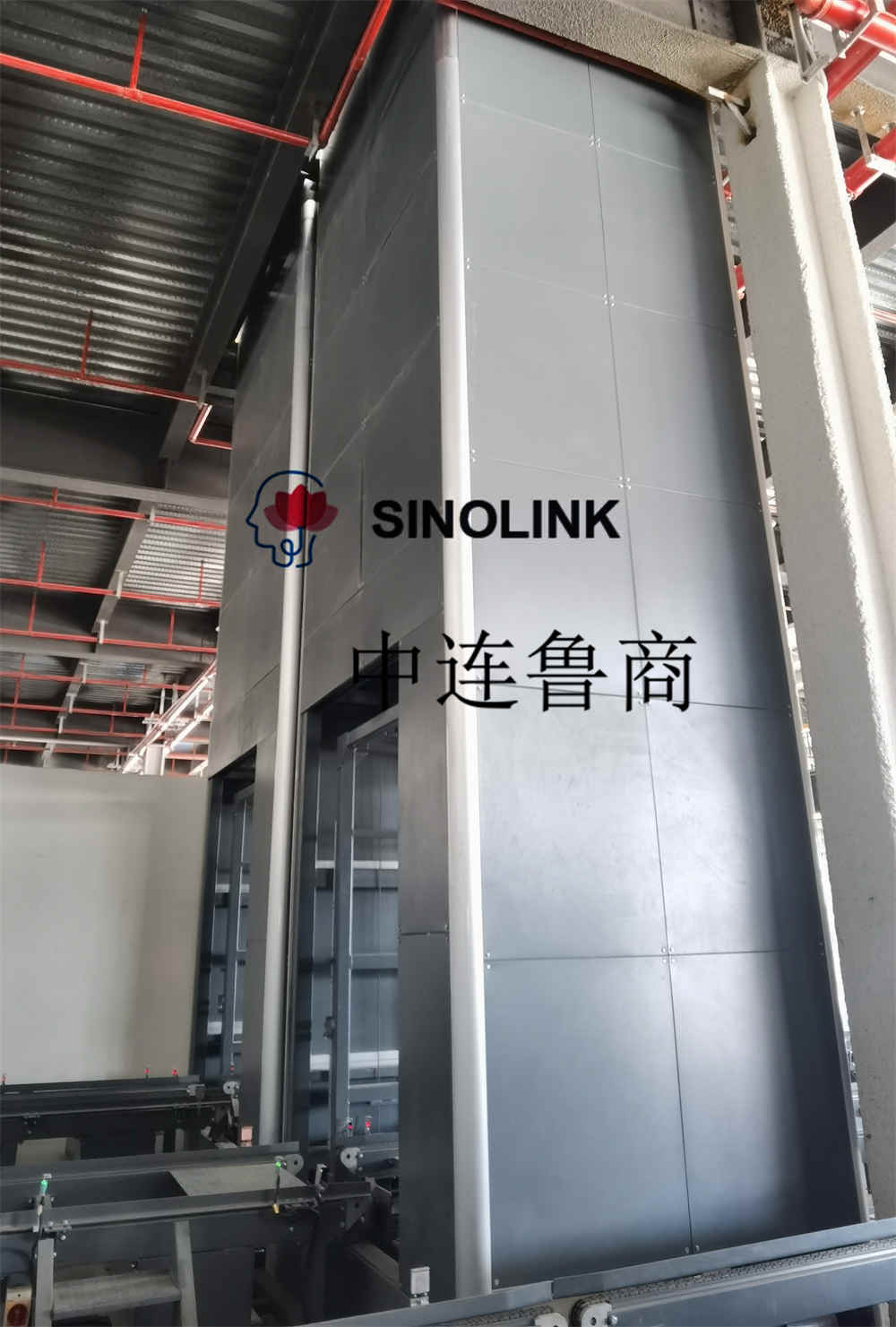

全自动无人往复垂直提升输送机

全自动无人往复垂直提升输送机提升设备：

该全自动无人重载式垂直提升输送机适用于纸箱、编织袋、塑料桶等各类商品的垂直升降提升。

1 基本框架
1 Material: 80*80mm aluminum alloy profiles, linked and assembled by means of screws
two Protective screening: exterior body adopts obvious natural glass

2 输送系统
1 The most important chain makes use of carbon metal 16A-1 curler chain whose pitch is 25.4mm with W-2 bending plates bilaterally.
two The pallet chain adopts unidirectional bending, pitch 25.4mm.
three The pallet makes use of 9269K aluminium profile, the floor is macromolecule plastic

3 驱动系统
1 The foremost axis makes use of carbon metal with nigrescence treatment, diameter 55mm
two Drive sprocket makes use of 16A-17 duplex chainwheel. Driven wheel makes use of 16A-17 easy chainwheel
three Tension bridle gadget makes use of T208 undeniable bearing housing
four The energy is SEW equipment reducer motor
4 控制系统
1 The manipulate software is Taiwan Yonghong PLC programming
two Detecting optoelectronic swap is Omron brand
three The manage cupboard is made of carbon steel

5 垂直提升输送机的工作流程
The product to be delivered is ready on the conveying line related to the elevator. When the photoelectricity detects that the pallet is in place, the PLC troubles a command. The blockading gadget will launch or the conveying line will start, and releases a product to the pallet. When the 2nd product arrive at the ready position, the block will raise or the conveying line stops and starts to wait for the photoelectricity to observe the subsequent pallet, then the PLC programming will trouble a command once more to launch the product.

详细需求，请随时与我们联系。我们必须帮助您提供最优化的方案！
